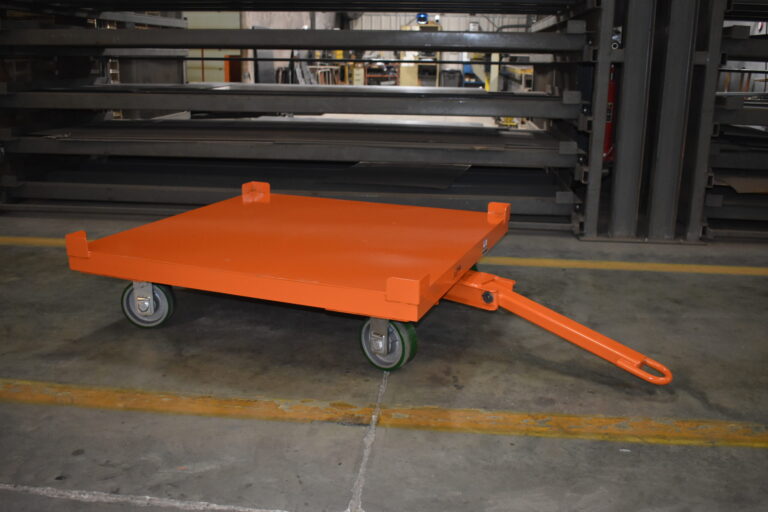

The Z53-001-075 is a 52 x 52 quad steer pallet cart built to tow pallets through a food operation. Four wheel link caster steering keeps the loaded trailer stable and trailing true behind a tugger.

Linked steering ties the wheels together so the trailer follows a predictable path through turns. That stability matters when towing full pallets across a busy production or distribution floor.

Corner lips contain each pallet on the deck, and polyurethane wheels with tapered bearings carry the 5,000 lb load. This trailer fits a fleet of link caster steer trailers.

Quad Steer Pallet Trailer Key Features

• Model Z53-001-075
• 52 in. wide x 52 in. long
• 5,000 lb load capacity
• Steel construction
• Four wheel link caster steering for stable trailing
• Drawbar tongue with front u-ring and rear pin and clevis
• Corner lips for pallet containment
• Polyurethane wheels with tapered bearings

Applications

• Towing pallets across a food production or distribution floor
• Holding a stable line through turns with linked steering
• Containing each pallet on the deck with corner lips
• Coupling into a train for longer towed runs

A food floor mixes foot traffic, equipment, and tight turns. Four wheel link caster steering keeps a loaded pallet trailer tracking true, so 5,000 lb loads move on a predictable path.

Quad Steer Pallet Cart Benefits

• Trails true through turns with four wheel link steering
• Keeps pallets contained on the deck with corner lips
• Carries heavy 5,000 lb pallet loads with stability
• Rolls smoothly on polyurethane wheels with tapered bearings
• Couples into a train for longer towed runs

Why Choose Nutting Link Caster Steer Trailers

Basic caster trailers wander under a heavy load, which is a real problem on a crowded food floor. Nutting engineers steering to the load, so link caster steering keeps a 5,000 lb pallet trailer on a controlled line.

Nutting has built carts and trailers in the USA since 1891. The steering linkage, tongue, and tapered-bearing wheels are specified for heavy, repeated towing duty.

This trailer tows behind electric tuggers and tow vehicles from every major brand, joining your existing trains without adapters.

Order this link caster steer trailer as shown, or have us adjust the deck, capacity, or containment. Tell us your pallet sizes and routes and we will spec it.

Explore the full line of link caster steer trailers.

Contact the Nutting team to request a quote.
