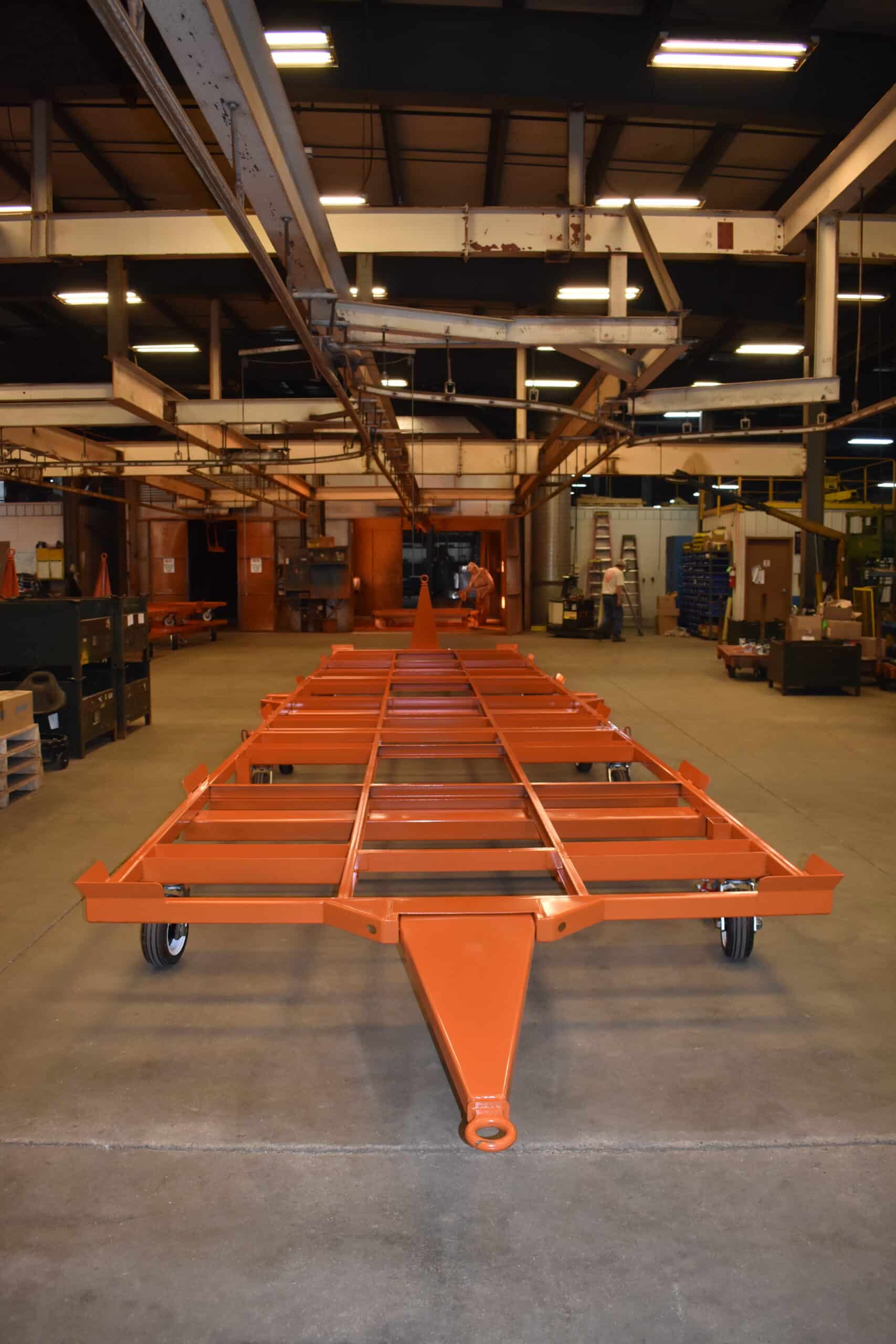

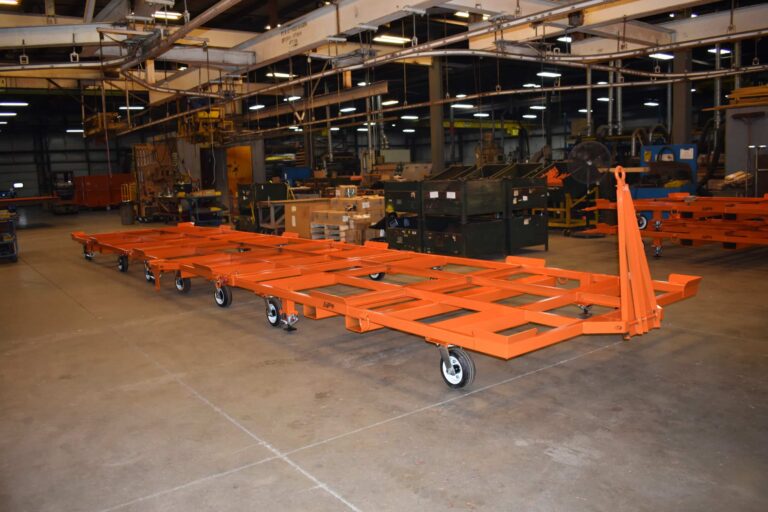

The 96 x 432 pivot steer trailer, part number Z52-016-064, is built for transporting long, crated aircraft components within manufacturing facilities. The steel frame supports loads up to 5000 lb and is configured with pivot steering to improve tracking and maneuverability. Reversible towing is enabled through loop tongues on both ends, allowing towing from either direction. Solid pneumatic tires provide stable movement across plant floor conditions. A three sectional frame design allows the trailer to be stacked when not in use to reduce storage space requirements.

Industry and Application for Aerospace Pivot Steer Trailers

This pivot steer trailer is used in aerospace manufacturing environments where large aircraft components are staged, transported, and repositioned during assembly operations. The long deck length and steering configuration support controlled handling of oversized, crated loads common in aircraft production. The trailer is also suitable for general manufacturing operations requiring precise movement of heavy components.

Additional application context is available under aerospace material handling solutions and manufacturing material handling solutions.

Key Features of the Pivot Steer Trailer

• 96 x 432 overall size
• 5000 lb capacity
• Steel construction
• Pivot steer configuration
• Reversible tow capability
• Loop tongue on both ends
• Solid pneumatic tires
• Three sectional frame
• Stackable for space saving storageIntended Use of the Industrial Pivot Steer Trailer
